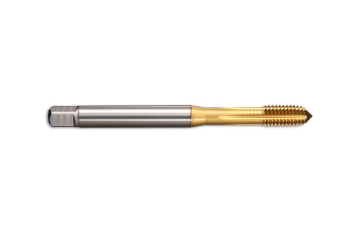

FCS Type - HSS-E Taps (DIN 371)

FCS Type - HSS-E Taps (DIN 371)

Descriptions

FCS Type HSS-E Fluteless tap with a 2-4 thread lead. For roll tapping in materials with an elasticity of over 10% up to 900 N/mm2. Special attention is required to obtain the correct core hole size. Available with lubrication grooves for deeper threads over 2.5 x diameter and to produce a more accurate thread form.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Nominal Diameter Overall Length Flute Length Material Finish Price
631377-02653 M3x0.5 ROLL D371 6HX FCS TiN TAP M3 x 0.5 TiN 56mm 5mm HSS-E P5 TiN Coated
You need to be logged in to see prices.
631377-03053 M4x0.7 ROLL D371 6HX FCS TiN TAP M4 x 0.7 TiN 63mm 7mm HSS-E P5 TiN Coated
You need to be logged in to see prices.
631377-03453 M5x0.8 ROLL D371 6HX FCS TiN TAP M5 x 0.8 TiN 70mm 8mm HSS-E P5 TiN Coated
You need to be logged in to see prices.
631377-03653 M6x1.0 ROLL D371 6HX FCS TiN TAP M6 x 1.0 TiN 80mm 10mm HSS-E P5 TiN Coated
You need to be logged in to see prices.
631377-04053 M8x1.25 ROLL D371 6HX FCS TiN TAP M8 x 1.25 TiN 90mm 13mm HSS-E P5 TiN Coated
You need to be logged in to see prices.
631377-04453 M10x1.5 ROLL D371 6HX FCS TiN TAP M10 x 1.5 TiN 100mm 15mm HSS-E P5 TiN Coated
You need to be logged in to see prices.
